TDF100

詳細說明

PID temperature controller+Single phase SCR

  Feature

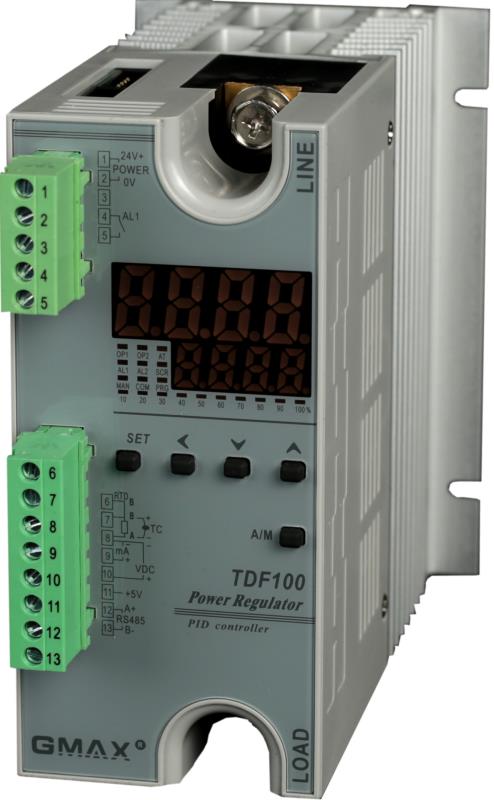

1.TDF100 is an all-in-one temperature controller+SCR unit with heatsink, it's really a ready to use solution for resistive loads, plug in terminals are used for connections, very easy when it comes down to installationRS-485 and power source using the same terminals.

2.Built-in display and setting buttons available, the configuration can be carried out even without master device

3.Unit can be used as a regular PlD controller or just a reqular SCR

4.0utput high/low limits configuration, soft-start function analog output

5.Works with all kinds of input, TC/RTD and analog signal covers 0-20mA,4-20mA,0-10Vdc,

0-5Vdc,1-5Vdcthis is a true universal input controllers, accuracy is 0.2%F.S

6.SCR output rated at 380V/220Vac(maximum 440Vac),single phaseAL1 relay output,

deviation alarm, absolute value alarm, 12 different alarms modesAL2 digits output,

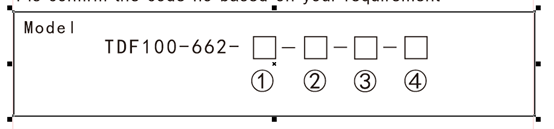

MODEL NO

①Main function：

    PID：This device used as a PID+SCR unit

    SCR：This device used as SCR unit only

②Input：

③．Current ratings (★Actural load should be no more than 80% of ratings）

     48A: resistive load 48A(200~440VAC)

     60A: resistive load60A(200~440VAC)

　　 80A: resistive load80A(200~440VAC)

④　Cooling fans

     N:NO fans

     F:With fans（24VDC/150mA)
